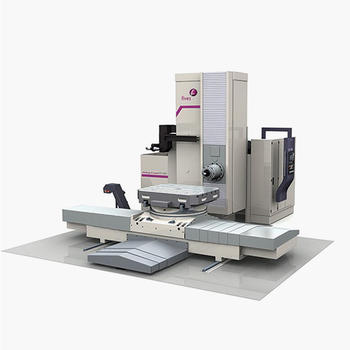

RT (Rotary Table) series horizontal boring mills
Fives offers its Giddings & Lewis RT Series with a built-in contouring rotary table. The flexibility of an additional axis makes this machine well suited for prismatic parts requiring work on multiple surfaces. Heavy, high-precision cuts are possible with the rigid machining platforms of all Giddings & Lewis boring mills.
Advantages of table-type horizontal boring mills
- Substantial weight capacity – table handles parts weighing as much as 40,000 kg.
- Rigid machining platform with one-piece column base and bed.
- High performance drive and way system provides both superior stiffness and allows fast traverse – 25 m/min.
- Modular design – select machine features and capabilities based on applications. Choose from three headstocks – two or four-speed, 130 or 155 mm diameter.
Specifications
| Machine specifications | RT 1250 | RT 1600 | RT 200011 |
| X-axis travel (mm) | 2500 | 2500 | 4400 |
| Optional X-axis travel (mm) | 3600 | 3600 / 4800 | 4400 |
| Y-axis travel (mm) | 2100 | 2100 | 2600 |
| Optional Y-axis travel (mm) | 2600 / 3100 | 2600 / 3100 / 3600 | 3100 / 3600 |
| W-axis travel (mm) | 1500 | 1500 | 2000 |
| Optional W-axis travel (mm) | 2000 / 2500 / 3500 | 2000 / 2500 / 3500 | 2500 / 3000 |
| Feeds/rapid traverse (m/min) | 25 | ||
| Table size (mm) | 1250 x 1600 | 1600 x 2000 | 1800 x 2000 |
| Optional tables (mm) | 1600 x 1800 | 1600 x 2500 | 2000 x 2000 (2500) |
| Allowable load (kg) | 15,000 | 25,000 | 40,000 |
Applications and operations
The amazing versatility of the RT series appeals to manufacturers in all industries - Aerospace, Automotive, Foundries, Oilfield, Mining, Defense and Job Shops to name a few. Our application engineers are equally versatile having helped customers in all industries develop the most productive solutions.
- Read how an Oilfield customer used an RT series HBM to add capacity.
- The rigidity of G&L boring mills makes it possible to take heavy cuts.
- Programmable boring bars and contouring heads add machining versatility and reduce the number of tools needed by adding turning capabilities to live spindle HBMs and HMCs. The video demonstrates how these attachments handle a variety of part features.
