MASTIFF 1800 CONVENTIONAL CENTRE LATHE 2000/3000 MM CENTER TO CENTER

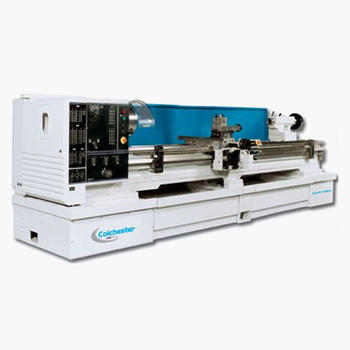

The Colchester Mastiff VS1800 conventional lathes leads the way in modern centre lathe technology.
Packed with features for safety, long-lasting precision and productivity, it can outperform most centre lathes in its class through its combination of electronically variable speed spindle drive and Constant Surface Speed option.

This heavyweight manual lathe has the power, capacity and versatility to perform the full range of turning duties, in production, maintenance or the tool room.

Please refer to the specifications below or download the brochure



Specifications



DefinitionValue
Height of Centres    280mm
Bed length between Centres    2000/3000mm
Swing over bed    554mm
Swing in gap    830mm
Swing over Cross Slide    370mm
Spindle bore    104mm
Morse Taper in Nose Bush    No. 5MT
Speed ranges    (3 Variable) 18-1800rpm
Motor11kw
Width over Bedways    400mm
Cross Slide Travel    300mm
Top Slide Travel    175mm
Tailstock Travel    178mm
Taper in Tailstock Barrel    No. 6 MT
Weight    3250/3610kg
