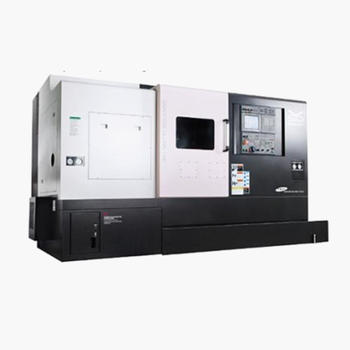

PL 2000SY/Y/MS 2500SY
Integrated machining operations in one set - up through Sub Spindel and Y-Axis
- BMT type machining feature providing ultimated machining capability on the workpiece.
- Synchronized C1- axis (main spindel) and C2- axis (sub spindel) indexing provides machining flexibility in a wide variety of workpiece configurations.
Specifications
| Title | PL60 | PL60L | PL60M | PL60LM |
| Swing over the bed - mm | 650 | |||
| Max. Machining diameter x Length - mm | 360 x 520 | 360 x 535 | 354 x 460 | 360 x 505 |
| Max. Machining bar size(MAIN/SUB) - mm | 66/36 | 66/- | 66/36 | 77/36 |
| Chuck size(MAIN/SUB) - inch | 8/6 | 8/- | 8/6 | 10/6 |
| Spindle speed(MAIN/SUB) - rmp | 4,000 / 6,000 | 4,000 / - | 4,000 / 6,000 | 3,500 / 6,000 |
| Max traverse (X/Z/Y/B) - mm | 235 / 580 / 100 / 580 | 210 / 515 / - / 200 | 235 / 580 / 100 /565 | |
| Number of tool position - ea | 12 | |||
| Shank size for square tool - mm | 25 x 25 | |||
| Shank size for boring bar - mm | 50 | |||
| Maxhine weight - kgf | 5,800 | 5,600 | 5,500 | 5,900 |
| Floor space (L x W) - mm | 3,658 x 1,930 | 3,658 x 1,930 | 3,458 x 1,700 | 3,658 x 1,930 |
| Controller | F 32i - B | F 0i - TD | F 0i - TD | F 32i - B |
