EMS400

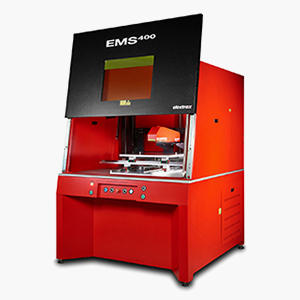

The Electrox EMS400 workstation is designed to handle large work pieces or to process batches of smaller components.
Fully integrated, motorised solutions with programmable X, Y and Z axes, enables high precision marking on a wide range of components
Four axes of motion control: X, Y, Z and rotary
Tiling function allows accurate marking of large surface areas
Step and repeat function for consistent part to part marking
Semi-automated, allowing minimal supervision on high quantity batch production components
Easy to use with minimum set-up requirements
Auto-door and tool plate supplied as standard
Specifications
| Dimensions | Height (Door Closed) 2026mm, Height (Door Open) 2450mm, Width 1504mm, Depth 1672mm |
| Weight | 650kg |
| Compatibility | Compatible with all Electrox lasers |
| Construction | Welded steel |
| Site Requirements | Solid level floor |
| Supply Requirements | Power 110/240V AC Single phase, 1.7kVA, 50 or 60Hz, clean supply compressed air standard factory clean supply 6 Bar |
Maximum Workpiece Sizes (with 600mm x 600mm x-y table)
| Lens (mm) | Length (mm) | Width (mm) | Height (mm) | Marking Fied Diameter (mm) |
| 100 | 600 | 600 | 490 | 85 |
| 163 | 600 | 600 | 412 | 140 |
| 254 | 600 | 600 | 273 | 220 |
| 350 | 600 | 600 | 164 | 285 |
| 410 | 600 | 600 | 84 | 350 |
